UD Max Tapes +
Wood Plastic Composite Sheet
Wood / Glass Fiber
Composite Performance
Wood fiber and short glass fiber reinforced polymer sheets. Two material families combining fiber reinforcement with thermoplastic formability for automotive interior components.
Sheet Thickness0.5–5 mm
Maximum Width2,100 mm
Fiber ReinforcementWood Fiber,
Short Glass Fiber
Short Glass Fiber
Thermoplastic MatrixPP

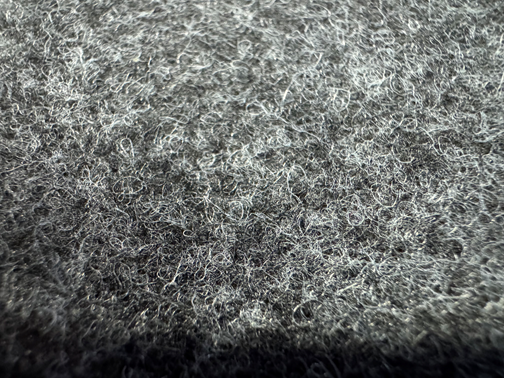

Optional Lamination
NW / Carpet
NW / CarpetShort Fiber-Reinforced Sheets for Automotive Interiors

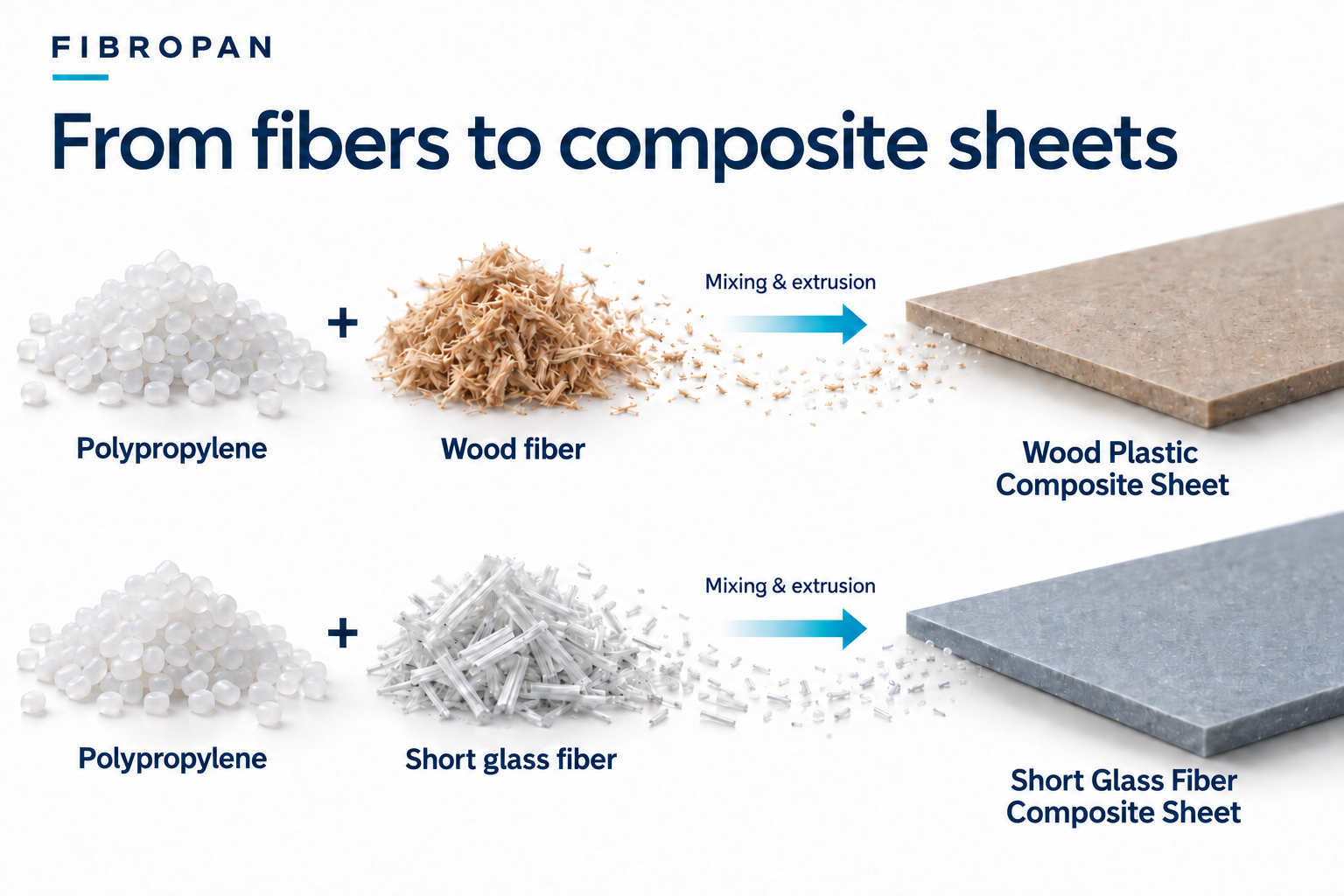

Manufactured in Eskişehir, Türkiye, Fibropan sheets combine polypropylene with wood fibers or short glass fibers. Extrusion produces a solid composite sheet that can be thermoformed into interior components.
We support material selection and component development, with optional nonwoven or carpet finishes and ongoing research into continuous-fiber reinforcement.
Products
Technical Data Sheet
Wood fiber and short glass fiber reinforced polypropylene sheets.
| Property / Test | Fibropan / A1(Short Wood Fiber) | Fibropan / B(Short Wood Fiber) | Fibropan / G(Short Glass Fiber) |
|---|---|---|---|
| Densityg/cm³ | 1.06-1.10 | 1.08-1.12 | 1.30-1.35 |
| Tensile strengthMPa | L ≥20T ≥15 | L ≥20T ≥15 | L ≥60T ≥40 |
| Flexural modulusMPa | L ≥3000T ≥2200 | L ≥3500T ≥2700 | L ≥8500T ≥3500 |
| Flexural strengthMPa | L ≥35T ≥28 | L ≥40T ≥30 | L ≥100T ≥50 |
| Charpy impact resistanceJ/cm² | L ≥1.2T ≥0.9 | L ≥1.0*T ≥0.8* | L ≥2.5T ≥2.0 |
| Shrinkage% | L 0.5T 0.9 | L 0.5T 0.9 | L 0.2-0.3T 0.4-0.5 |
| Burning testISO 3795-1989 | Class B | Class B | Class B |
| Burning ratemm/min | <100 | <100 | ≤100 |
| Heavy metal testELV · Cd / Cr(VI) / Pb / Hg | ND | ND | ND |
Reference methods: FIAT/FCA 9.55359/02 (mechanical properties); ISO 3795-1989 / DIN 75200 (burning); ELV testing (heavy metals).
L: longitudinal · T: transverse · ND: not detected (catalog-reported). Mechanical values are reference specification limits; shrinkage, Class B and ND are retained catalog data.
*Charpy specimen for Fibropan / B: A = 127 mm, B = 95 mm, width = 12.7 mm. G shrinkage: post-moulding reference values.
3D forming

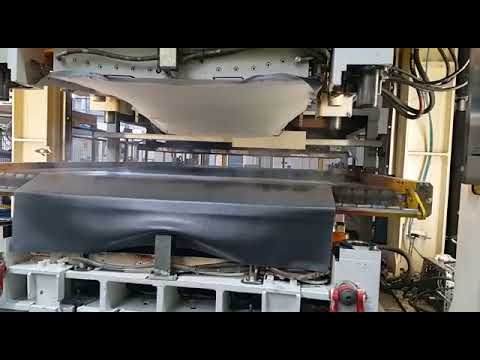

Thermoforming Process
Both wood fiber and short glass fiber reinforced thermoplastic sheets can be formed into three-dimensional components. Heating and molding transform the flat sheet into a shape suited to the application.
Material grade, surface finish and forming conditions are selected around the component geometry and its requirements.
01 · Heat02 · Form03 · Cool & trim
Research & development
UD Max Reinforced
Composite Sheets
NEW PRODUCT DEVELOPMENT · R&D PHASE

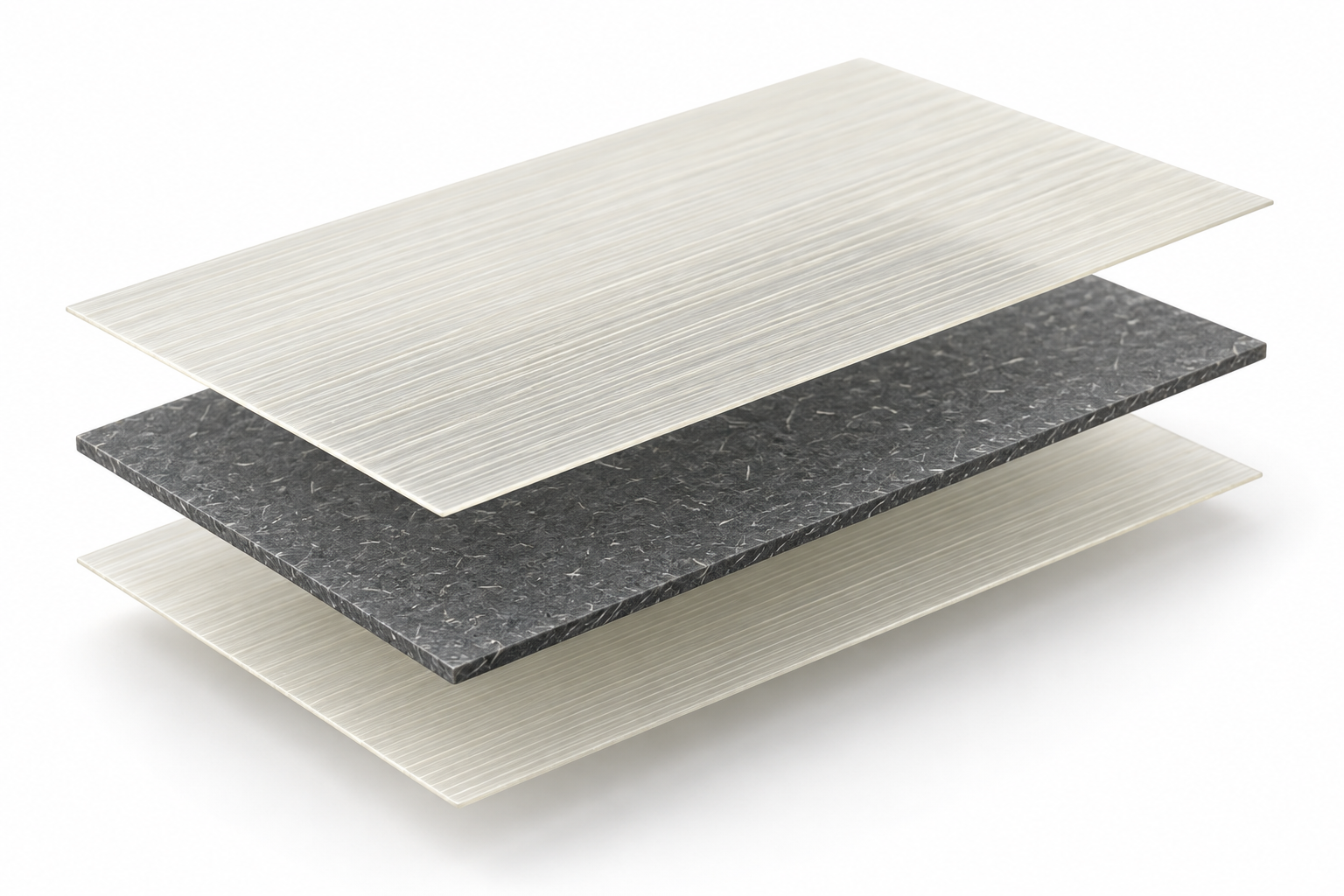

New development work is underway to combine Fibropan solid composite cores with UD Max continuous glass fiber reinforced thermoplastic layers on both faces.
UD Max Tapes +
UD Max Tapes +
PP Short Glass Fiber Sheet
Concept visualizations · Layers separated to show the structure · R&D phase
100% recyclable
Our development target for these new thermoplastic material systems.
These new product structures are in the R&D phase. Formulation, lamination and performance validation are ongoing.
Explore UD Max Tapes ↗Applications
Automotive Interior Components
Formable sheets for passenger cars and commercial vehicles.
Download

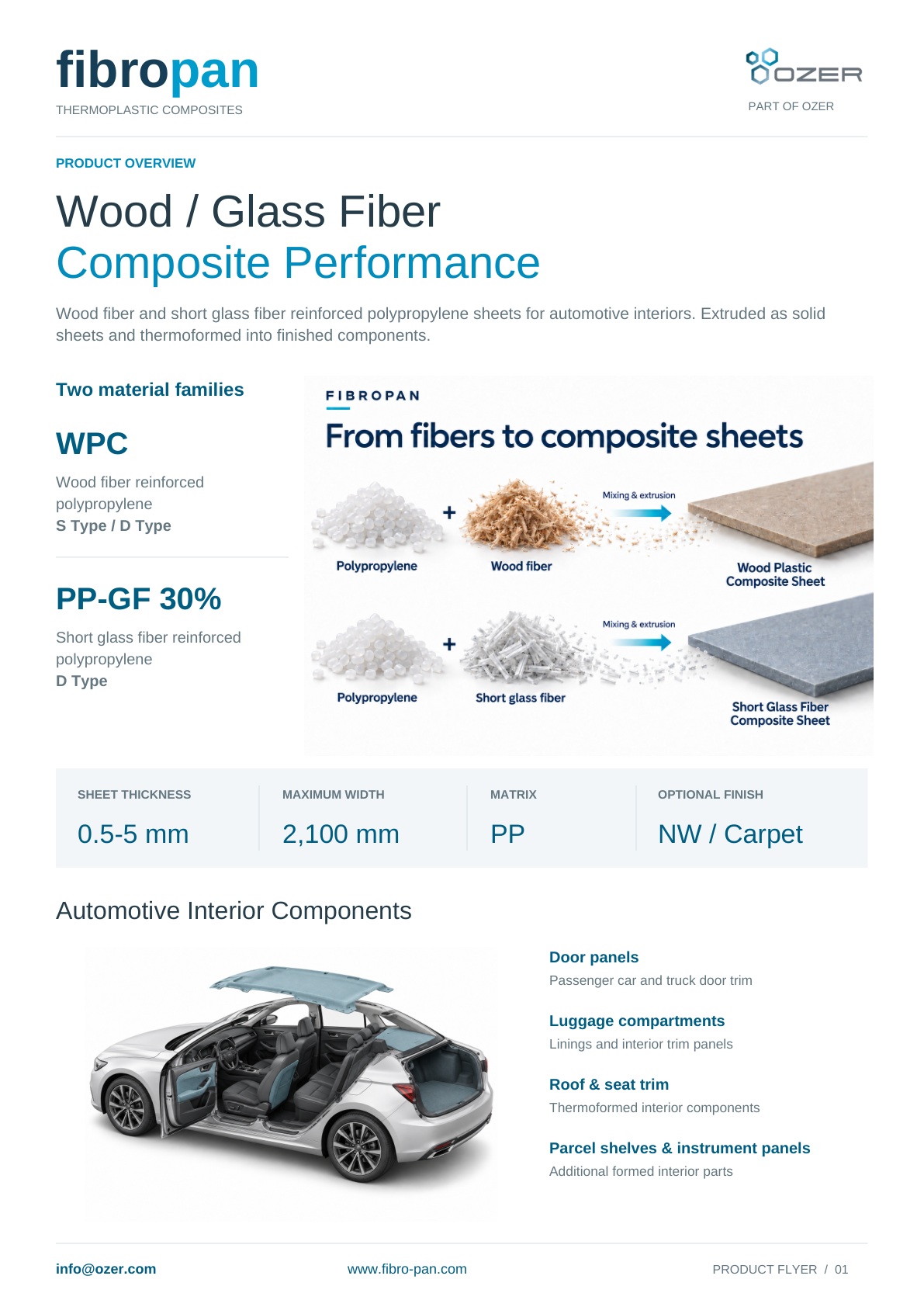

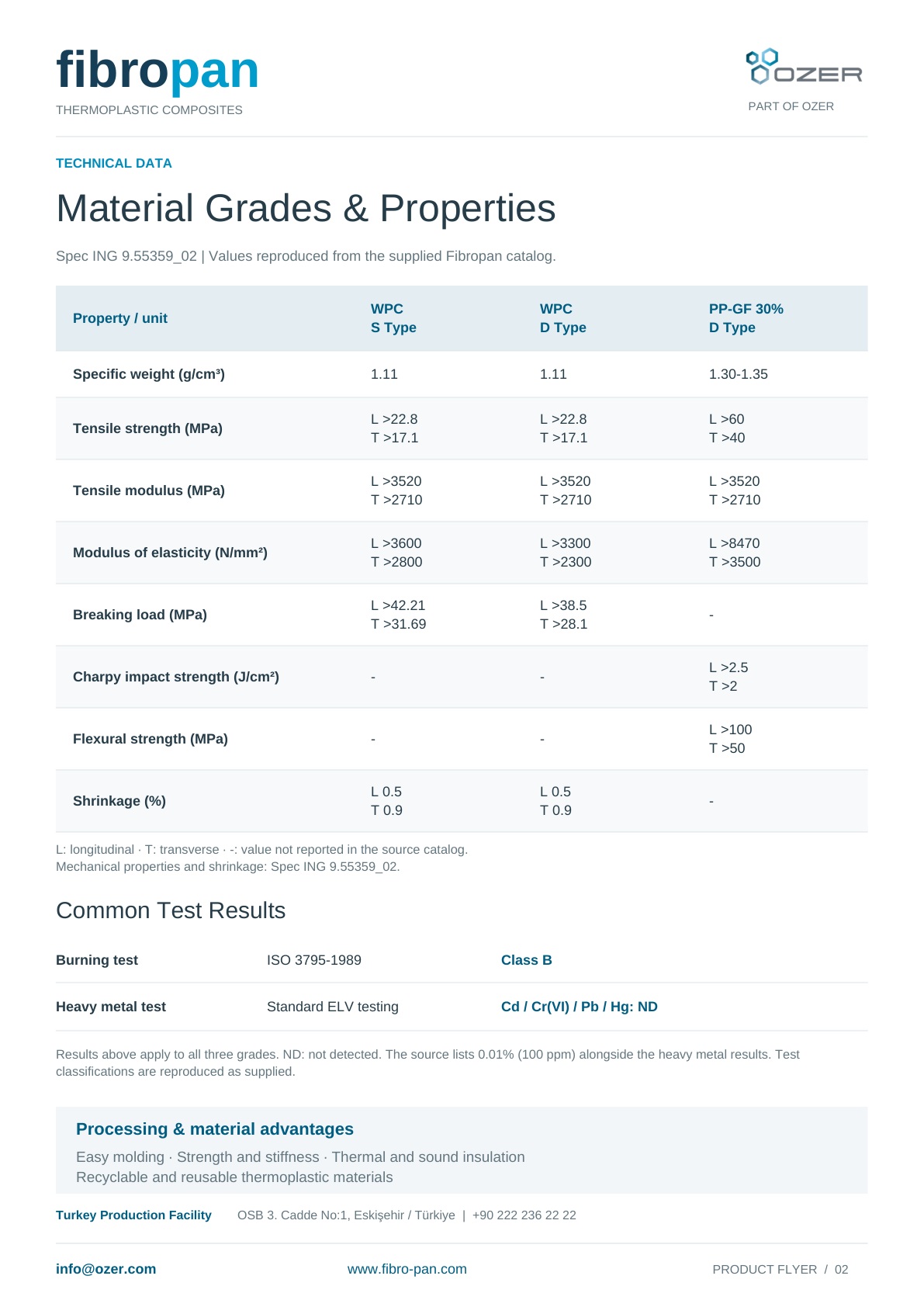

Product overview, automotive applications and complete technical data for WPC and PP-GF composite sheets.
Quality &
Sustainability
Testing & Development
Our laboratory team supports material selection and development around customer requirements. Continuous improvement, product safety and quality awareness guide our work.
Resource Efficiency & Recycling
We work to use resources efficiently, reduce waste and support recycling throughout the product life cycle.
Certifications
Özer group certifications and quality systems
QDMS
Digital quality management
CE
European conformity marking
